Product details

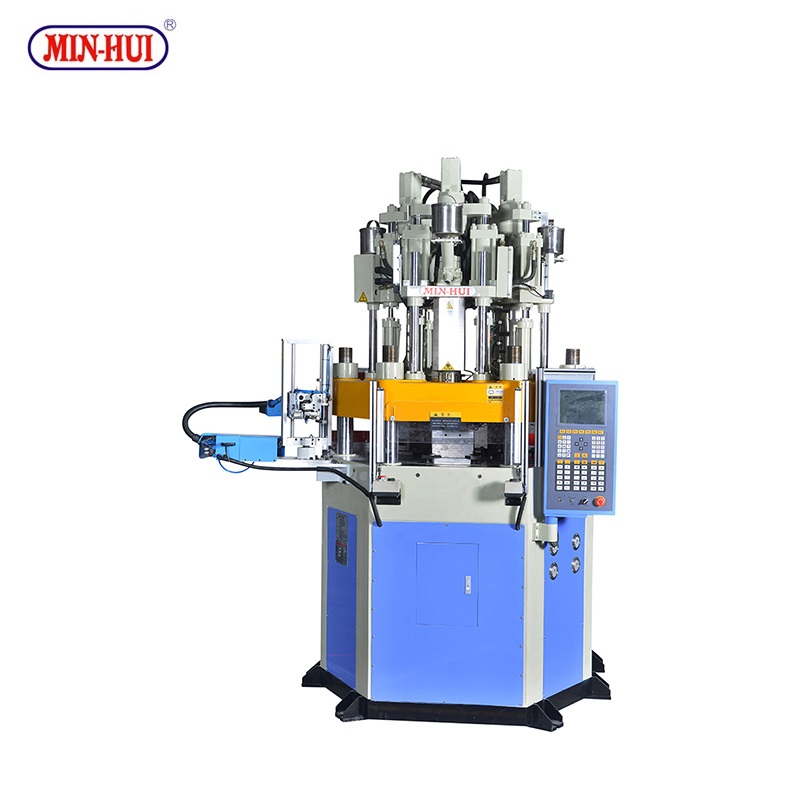

Product name：MH-R-170T Two-color injection moulding machine
Product number：MH-R-170T-2C
Market price：

Clamping force:10T~500T
Injection weight:35g~850g
Vertical calmping, vertical injection
Rotation stability mult-station design,
accuracy rotation and positioning,
convenient taking and placing device.
We can upgrade to servo motor for customers's need
The actual energy save 50%~70%

(Screw Selection) (Specifcation)				Main injection system (first color)	Secondary injection system (second color)
			Series.No	B,C	B,C
Option Injection System
CLAMPING UNIT			KN(tf)	1666(170)
	Clamping Force
			mm	300
	Clamping Stroke
			mm	280(380)
	Min.Mold Thickness
			mm	580(680)
	Max.Opening
			mm	Φ1170
	Diameter Of Rotary Table
			mm	90
	Ejector Distance
			KN(tf)	26.5(2.7)
	Ejector Force
OTHERS			Mpa(kgf/cm2)	13.7(140)
	System Pressure
			L	860
	Oil Tank Capacity
			KW(HP)	15(20)+15(20)
	Electric Power
		L*W	M	2.45*2.3
	Machine Dimensions	H	M	3.9
			tf	9.1
	Machine Weight

Most of plastic injection molding machines are horizontal. but, there are also some vertical injection molding machines. The difference is that: for the horizontal injection molding machine, the molds should be put onto the machine , with left half and right half. for the vertical injection molding machine the molds should be put onto the machine vertically, with top half and bottom half.

Injection system is one of the most important parts of injection molding machine. There are 3 main forms: plunger type, screw type, screw pre plastic plunger injection type. Screw type is the most used at present.

Vertical injection molding machines function the same as traditional horizontal machines. But they are orientated to operate on the vertical axis. This type of machine is available in hydraulic, electric and hybrid executions to meet a range of customer requirements.

Vertical injection molding machines must very little floor space due to the orientation of the machine. Vertical injection molding machines are particularly suited for insert molding applications. Components can be easily loaded into the mold and held in place by gravity before over molding.

Vertical injection molding machines often incorporate a shuttle. Or rotary table, allowing loading and demolding within the machines cycle time.

Vertical injection molding machine advantage:

• Ergonomic operations thanks to wide range of different clamping systems

• Short cycle times and high productivity thanks to machine versions with various rotary tables and sliding tables

• Servo-electric rotary tables for precise and reliable processing of delicate inserts

• Simple integration into automated production lines

• Particularly space-saving, compact design

PREV：MH-R-180T Three-color injection moulding machine

NEXT：It's the end one!

Related recommend

learn more

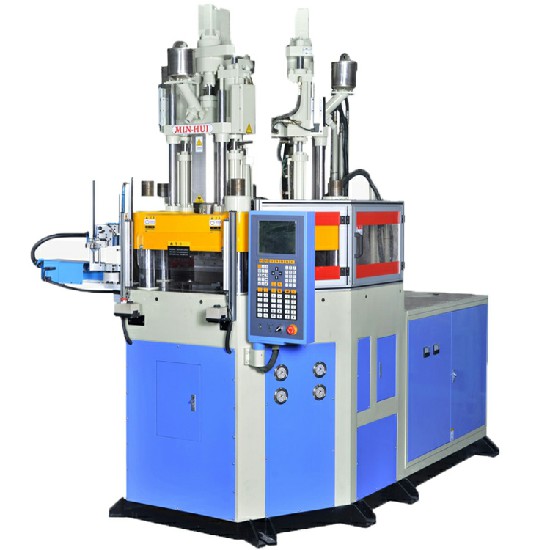

MH-R-180T Three-color injection moulding machine
