Product details

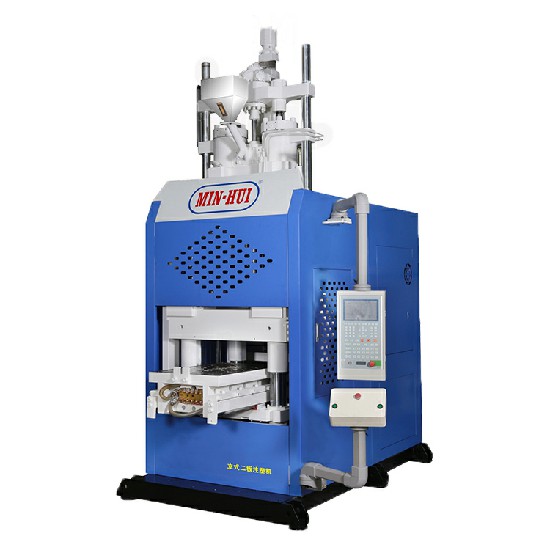

Product name：Four Clamping and Two platen vertical machine
Product number：MHLB-450T
Market price：

Two Platen Vertical Injection Machine
Vertical Injection Molding Machine - Plastic Injection
This equipment is suitable for large-scale products with inserts,and can be used in auto,
elecronics,daily necessities,toys,tools and other industries.
Representative product:plastic flower.

INJECTION UNIT			mm	Φ90	Φ95	Φ100
	Screw Diameter
			㎝3	3020	3365	3728
	Theoretical shot Volume
			g(oz)	256	841	841
	Injection Weight(PS)
			cm3/sec	157.6（1607.5）	83.6	83.6
	Injection Rate
			mm/s	151	34	34
	Injection Speed
			Mpa(kgf/cm2)	2808.6(98.8)	3129.5(110.2)	3467(122)
	Max.Injection Pressure
			r.p.m	0~327	0~210	0~210
	Screw Speed Rotation
			mm	≧60
	Nozzle Out From Platens
CLAMPING UNIT			kN(tf)	3430(350)
	Clamping Force
			mm	730
	Clamping Stroke
			mm	730
	Max.Mould Opening Distance
			mm	970
	Sliding table stroke
			mm	920*580
	Max Mould Size
			mm	110
	Ejector stroke
			kN(tf)	78.4（8.0）
	Ejector Force
OTHERS			Mpa(kgf/cm2)	15.7（160）
	System Pressure
			L	150
	Oil Tank Capacity
			kW(HP)	15（20）
	Electric Power
		L*W	M	3.5*3.0
	Machine Dimensions	H	M	4.8

Most of plastic injection molding machines are horizontal. but, there are also some vertical injection molding machines. The difference is that: for the horizontal injection molding machine, the molds should be put onto the machine , with left half and right half. for the vertical injection molding machine the molds should be put onto the machine vertically, with top half and bottom half.

Injection system is one of the most important parts of injection molding machine. There are 3 main forms: plunger type, screw type, screw pre plastic plunger injection type. Screw type is the most used at present.

Vertical injection molding machines function the same as traditional horizontal machines. But they are orientated to operate on the vertical axis. This type of machine is available in hydraulic, electric and hybrid executions to meet a range of customer requirements.

Vertical injection molding machines must very little floor space due to the orientation of the machine. Vertical injection molding machines are particularly suited for insert molding applications. Components can be easily loaded into the mold and held in place by gravity before over molding.

Vertical injection molding machines often incorporate a shuttle. Or rotary table, allowing loading and demolding within the machines cycle time.

Vertical injection molding machine advantage:

• Ergonomic operations thanks to wide range of different clamping systems

• Short cycle times and high productivity thanks to machine versions with various rotary tables and sliding tables

• Servo-electric rotary tables for precise and reliable processing of delicate inserts

• Simple integration into automated production lines

• Particularly space-saving, compact design
